Custom Orders

  • We manufacture custom order OK Nozzles that match your needs.
  • We have a track record of discharge rate of 60 mL / min to 1200 L / min. Custom made nozzles can be manufactured according to the water pressure, shape, usage, etc., as well as the discharge amount.
  • Usually SUS316L is used as a material, but Teflon (PTFE) is also available.

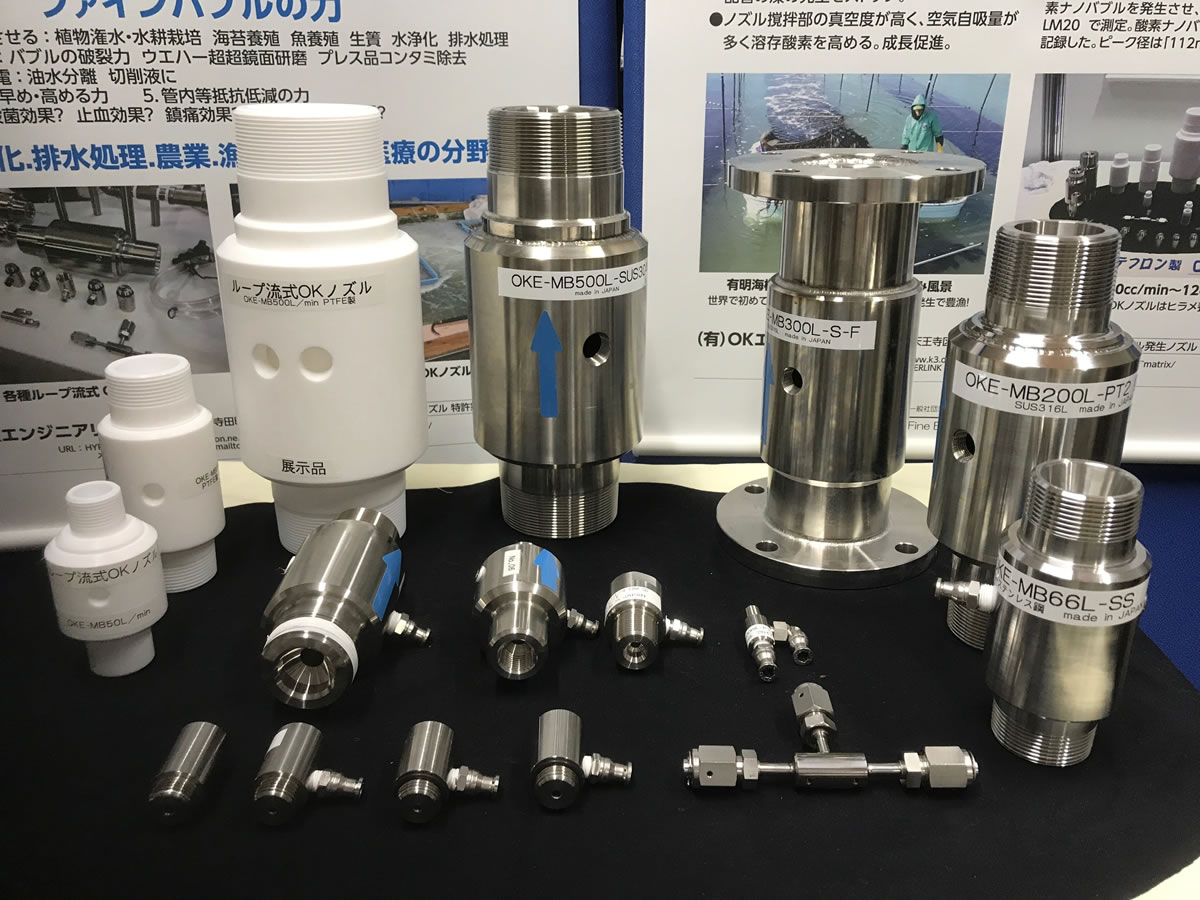

  • Currently, there are over 100 types.

Special order nozzle manufacturing example

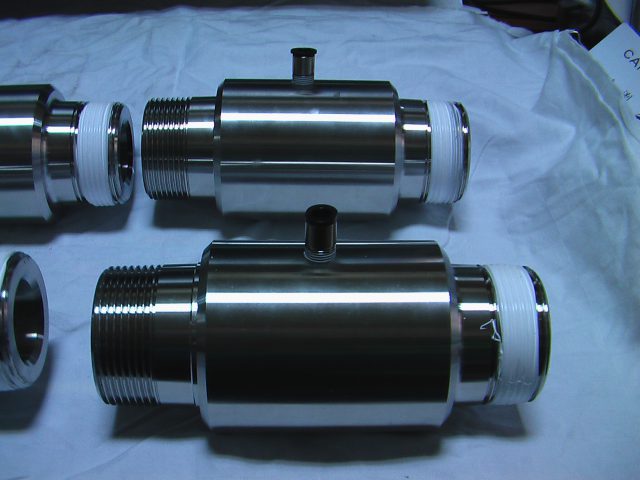

Special OK Nozzle for waste water treatment (100L/min)

Two 100L/min fine bubble generation nozzles was delivered to the wastewater treatment of a food maker in Shikoku. After a while, we received a message from them telling us the installation was completed and as a result the oxygen deficiency which was their main problem had solved all at once. BOD 10,000PPM became 100PPM or less, demonstrating that BOD reduction effect is large.

Special order nozzle for small flow (500cc/min)

This is a 500cc/min nozzle with small flow quantity.
When the water pressure was 0.15MPa, the discharging amount was 410mL/min and it seemed like it was necessary to increase the degree of vacuum as the fine bubble generation amount was relatively small when you need certain amount of generation. We adjusted the degree of vacuum inside the nozzle’s agitation part to be as high as  -0.09MPa, then it resulted in increasing the bubble generation a little more. As you can see in this photo, there are extremely small bubbles coming out from the nozzle.

Assembly example of self-intaking hose set

We will select the attachments for the nozzle such as hose, valves etc. according to your usage.

Example 1:

– Teflon hose,

– Check valve (Viton)

– Ball valve made of SUS316



Example 2:

– Teflon hose

– Ball valve made of SUS304



For any inquiries, questions or quotation requests, please fill out the following form or email us directly web@oknozzle.com
